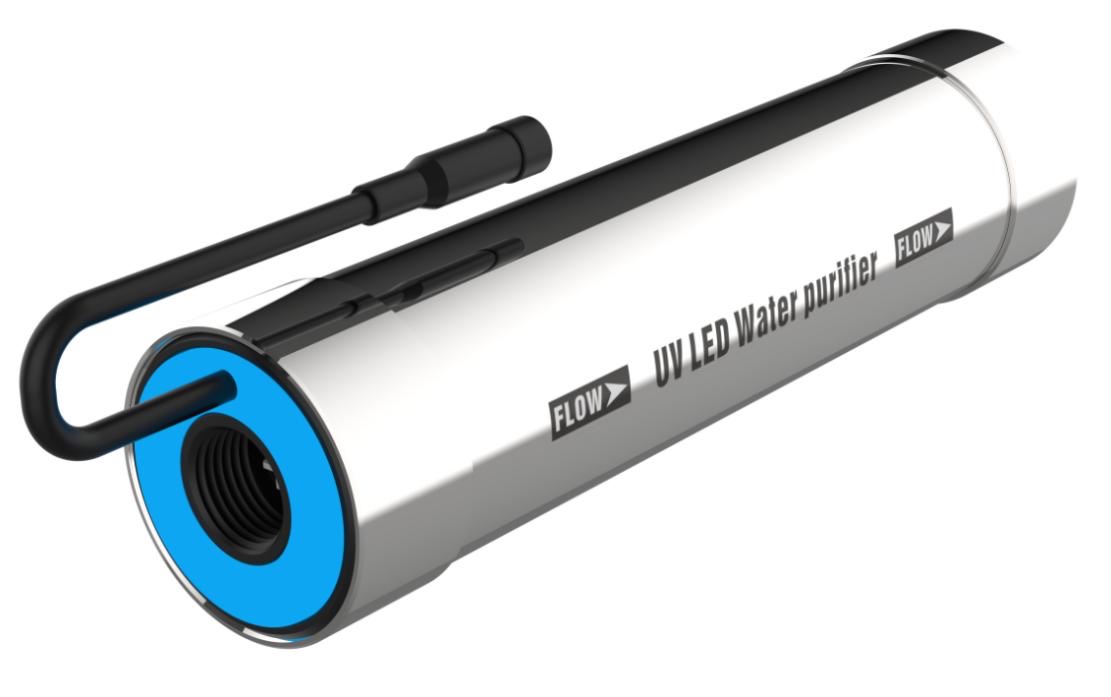

• Model: AGLED40012
  • Dimensions: 289 × 108 × 154 mm
  • Net Weight: 3.3 kg
  • Operating Voltage: 100–240 VAC
  • Operating Current:
    • 1.3A (100V)
    • 0.55A (230V)
  • Rated Power: 50 W
  • Optical Power: 2000 mW
  • LED Lifespan: 5000 hours
  • Start-up Flow Rate: > 2 L/min
  • Maximum Flow Rate: 12 GPM
  • Maximum Inlet Pressure: 0.8 MPa
  • Switching Cycle Count: > 100,000
  • Inlet / Outlet: 1” female
  • Applicable Water
  • Temperature: 1 – 45°C
  • Energy-efficient with lower power consumption
  • Eco-friendly (mercury-free & no harmful chemicals)
  • Long service life with minimal maintenance
  • Flexible application for various water treatment needs
  • Modular design with integrated: o Water flow switch o Flow limit valve
  • Compact and durable design for easy installation
  • Uses advanced UVC LED technology for water sterilization
  • Significantly reduces energy consumption compared to traditional UV lamps
  • Chemical-free sterilization process (purely physical method)
  • Instant operation – no warm-up time required
  • No heat generation during operation
  • Mercury-free and environmentally safe
  • Sterilization efficiency up to 99.99% (SGS certified)
  • Designed for seamless integration into various water systems
  • Instant sterilization with on/off functionality
  • No chemicals, no mercury, and no byproducts
  • Lower operating costs due to energy efficiency
  • Reliable and consistent disinfection performance
  • Easy to integrate into residential or commercial systems
  • Protect the module from heavy impacts or collisions
  • Use the correct input voltage to avoid damage
  • Do not reverse electrical polarity
  • For best performance:
    • Avoid highly turbid water
    • Avoid water with high hardness (high Calcium & Magnesium)
  • Recommended to install a pre-filtration system to improve sterilization efficiency
  •  All materials comply with RoHS & REACH environmental standards
  • All water-contact components meet food safety and water quality standards

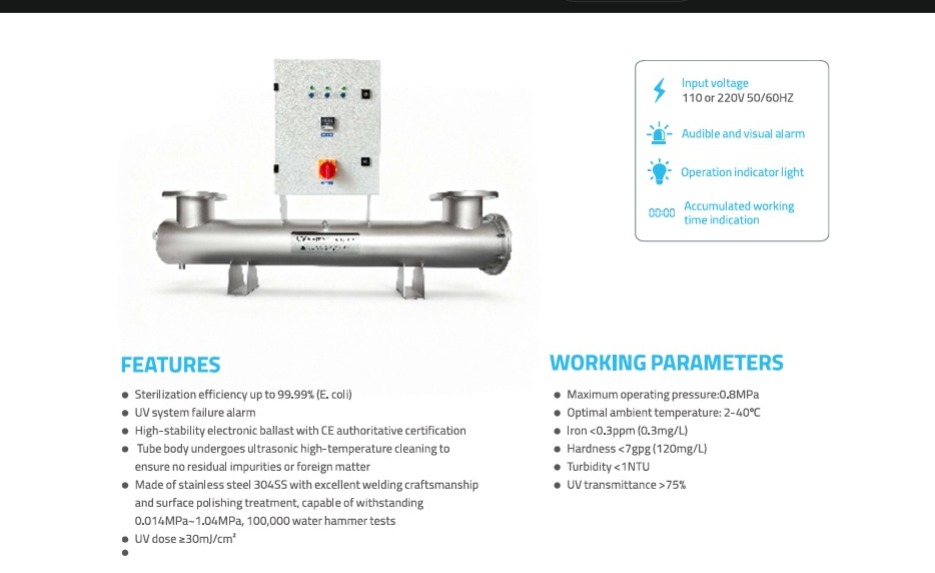

UV Stalisizer

FEATURES

  • Sterilization efficiency up to 99.99% (E. coli).
  • Equipped with a UV system failure alarm.
  • Utilizes a high-quality electronic ballast with CE certification.
  • The chamber body undergoes ultrasonic high-temperature cleaning to ensure that no residual impurities or foreign particles remain.
  • Constructed from 304 stainless steel (304SS) with superior welding quality and precision surface polishing.
  • Designed to withstand pressures ranging from 0.014 MPa to 1.04 MPa and has successfully passed 100,000 water hammer tests.
  • UV dose ≥ 30 mJ/cm².

WORKING PARAMETERS

  • Maximum operating pressure: 0.8 MPa.
  • Optimal ambient temperature: 2–40°C.
  • Iron content (Fe): < 0.3 ppm (0.3 mg/L).
  • Water hardness: < 7 gpg (120 mg/L).
  • Turbidity: < 1 NTU.
  • UV transmittance: > 75%.

CONTROL PANEL FEATURES

  • Input voltage: 110V or 220V, 50/60Hz.
  • Audible and visual alarm.
  • Operation indicator light.
  • Accumulated operating time indicator.
